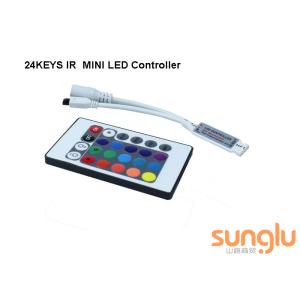

IR 24 Keys LED Lighting Accessories Infrared Mini RGB LED Controller ROHS Certified

24 key infrared rgb led controller

Parameters:

This product can be used by infrared remote control, with one-touch function controlled straightforward, realized gradient, jumping, flicker on dynamic functions, broken memory function without frequent Settings, speed adjustable brightness. This product is suitable for various LED lamp tape and module control.

Ⅰ.The related parameters:

Input/output voltage : DC5-12V

Remote distance : MAX:10 meters
Maximum output: current 2A

Largest single load : 72W

Ⅱ.Instructions:

1. When inserting the lamp plug in the socket, be sure that the output of the controller lamp bar (the module) public end (total of Yin or Yang V + V -) and controller of public end corresponding are connected according to different light bar for change output wires.
2. When inserting vehicle with DC12V power supply only in remote controller DC seat, remote controller DC can be manipulated according to needs to carry on the work.
3. When installing remote controller, be sure receiving tube mounting in no obstacle place, avoiding remote failure.

Safety information

1. The input voltage of this controller should to be only 12V DC.DC24V of other high voltage would most probably destroy it.
2. The standard warranty is one year. Our company won’t be responsible for any damage of the controller due to any wrong operation.
